SD1移动式龙门架

SD1移动式龙门架

浏览次数:7247 次  价格:0


概述:
上海双雕起重机械有限公司设计制造的移动式龙门架(吊)系列产品具有结构简单,安全可靠,操作方便,转动灵活,作业空间大,投资成本低,适用于设备的安装调试、磨具的装卸与维修、仓库货物的装卸车等吊运场合。比其他常规性吊运设备更显示其优越性。

Summary: Shanghai Shuangdiao Hoisting Machinery Co., Ltd. designs and manufactures of mobile gantry series products with simple structure, safe and reliable performance, convenient operation, flexible rotation, large working space, low investment costs and are applicable to equipment installation and debugging, mold handling and maintenance, warehouse goods loading and unloading and other lifting occasions. The products are superior than other conventional lifting and transport equipment. Each type portal crane can be made to disassembled type, after disassembled can be bundled. It is more convenient to transport.

性能优点:可全方位移动性,可快速拆卸安装,占地面积小钢架构设计合理。如果厂房高度受限,可以选配低净空电动葫芦。
Performance excellences: The gantry has a full range of mobility, easy to installation and disassembly, covering a small area, reasonable steel structure design . If the height of the plant is limited, the low headroom electric hoist is available for easily low altitude operation.

适用场合:地面平整的场地、仓库、物流中心、生产车间、试验室、洁净室。
Suitable occasions: flat ground, warehouse, logistics center, production workshop, testing room, clean room, etc.

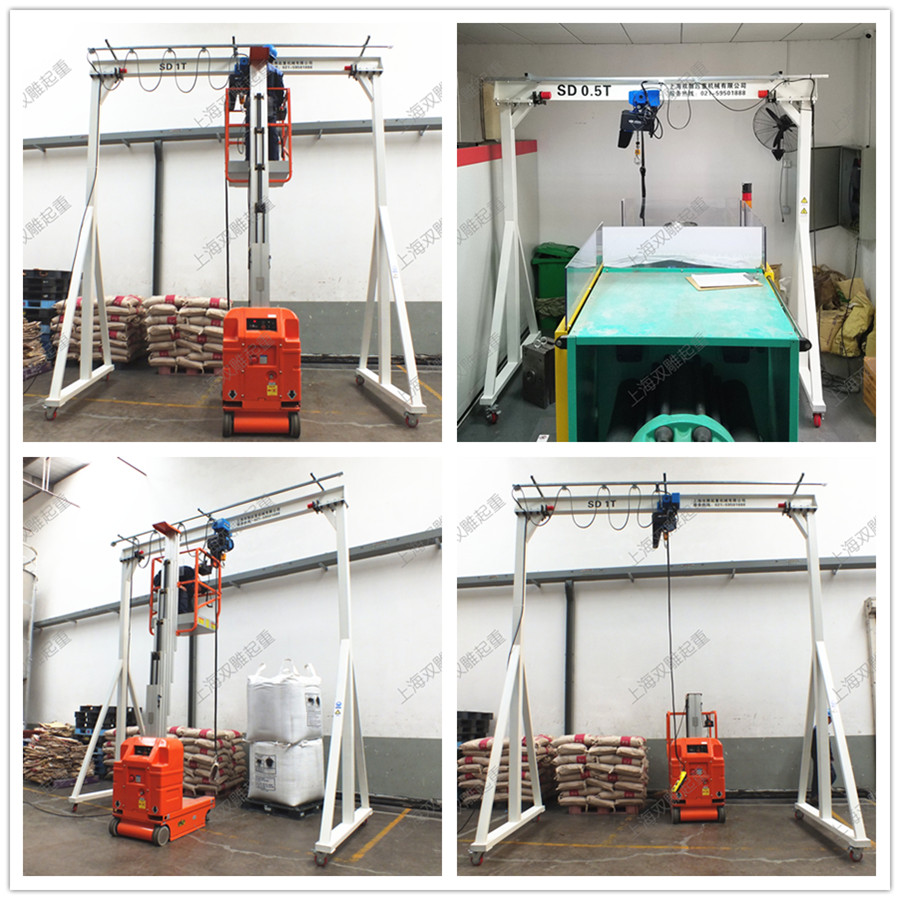

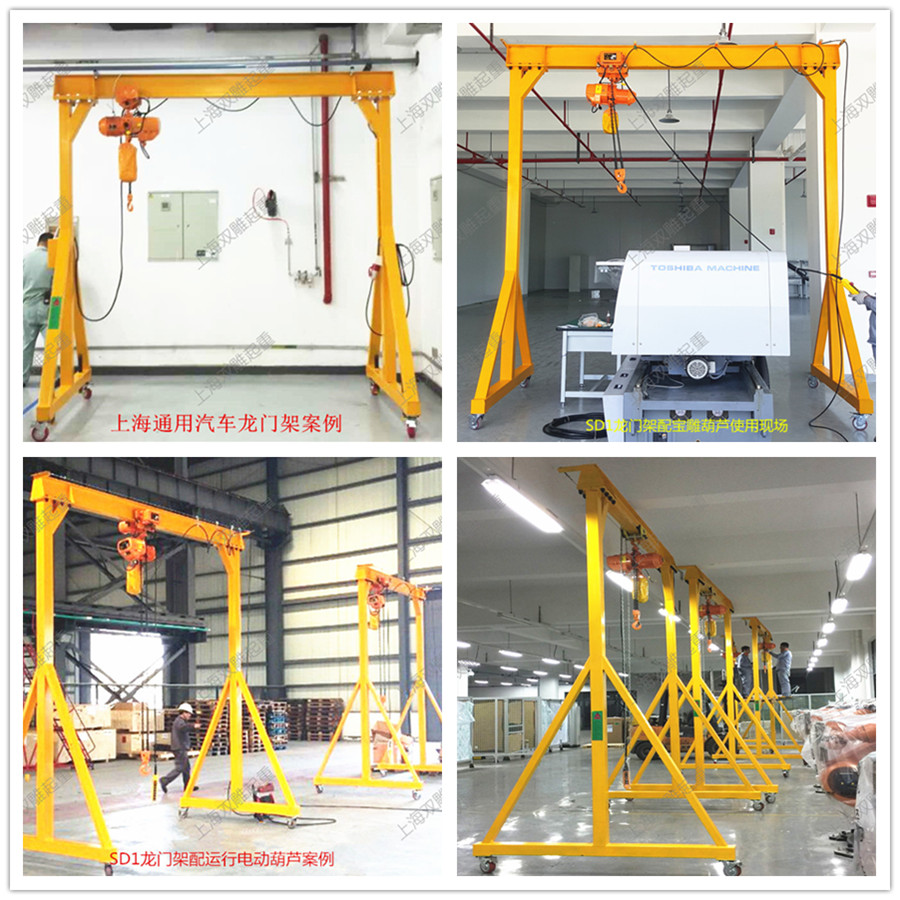

SD1移动式龙门架 采用方管做支架主体,用扁管做斜撑,用厚度12MM--20MM钢板四块和16--20只高强度螺丝将支架与工字钢横梁连接,配不同型号的起重专用万向双刹车脚轮即可组成可移动立柱式龙门架。此款龙门架起重量最小规格0.3吨,最大规格20吨。最大宽度20米,最高高度12米。

此款龙门架适用于设备安装与调试、模具的装卸与维修,故又叫做模具吊。

此款龙门架的另一重要用途是装卸车。可选配手拉葫芦手拉小车、手拉小车与电动葫芦及运行式电动葫芦使用。

SD1 Gantry Crane
Structure features: SD1 Gantry Crane adopts the square steel pipe as frame main body, with flat steel pipes as the bevel , with thickness of 12MM-20MM 4 pieces of steel plate and 16-20 high-strength screws to connect the frame main body and the I-steel beam, with different type of brake wheels. The capacity is from 0.3 tons to 20 tons. The maximum width can be 20 meters, the maximum height can be 12 meters. It is applicable to equipment installation and disassembly, mold loading and maintenance, so it is also called the mold lifting. It can be equipped with manual chain block with trolley, electric hoist with electric trolley, ect.








上海双雕起重机械有限公司



注意:由于我公司产品不断更新,如有数据不符,以实物为准。
